Description

Jungheinrich EZS 010 is the compact entry-level truck for effortless towing of smaller loads over shorter distances and in confined spaces, indoors and outdoors and also on gradients.

  • Li-Ion Battery 24 V /36 A
  • Capacity 1000 kg
  • Width / length: 385 /915 mm

The electric tow tractor combines compact dimensions with convincing lithium-ion performance and high flexibility: The universal coupling enables all types of trailer and trolley to be docked, even those without a tiller. This makes the EZS 010 a flexible all-rounder that shows its strengths in numerous environments: in production, order picking, retail and as a last-mile solution.

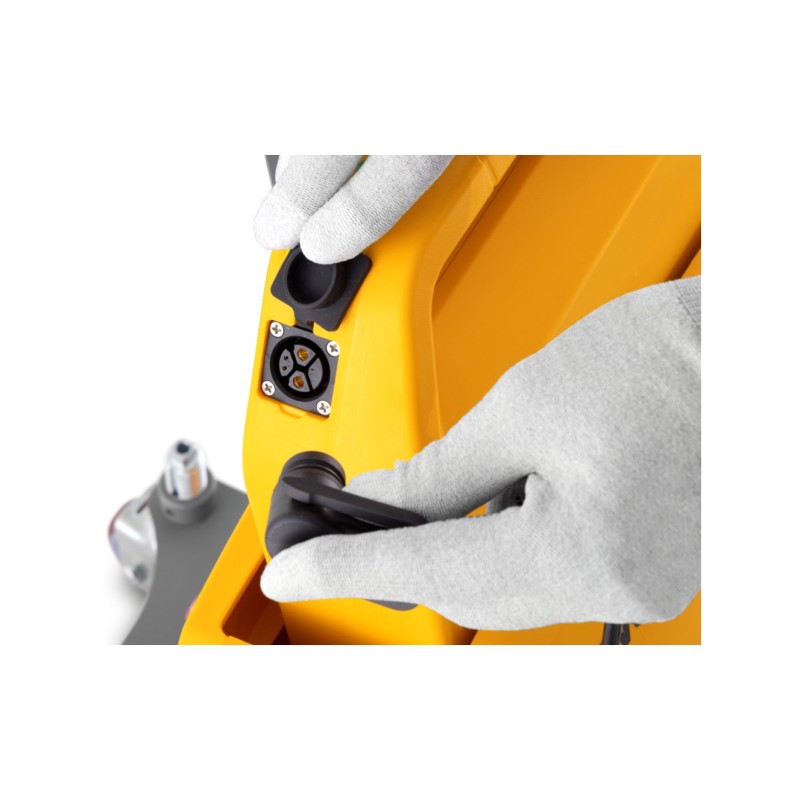

Booster charging of the lithium-ion battery is quickly possible at any socket. Alternatively, thanks to its low weight, the battery can be changed by hand in seconds. In terms of ergonomics, the EZS 010 scores points with the height of the tiller that can be incrementally adjusted, and a foot guard offers protection for the operator. In summary, it is the ideal truck for pedestrian mode as the transport of goods is made faster and more efficient.

Load capacity
1000 kg
Drive
Electric
Total length (l1)
915 mm
Turning radius (Wa)
560 mm
Battery type
Li-ion
Battery voltage
24 V
Drive motor performance S2 60 min
0,4 kW
Total width (b1)
503 mm
Ground clearance
35 mm
Battery weight
7,5 kg
Travel speed with / without load
4,5 / 4,9 km/h
Sound level according to EN 12 053
70 dB (A)
  • Starter
  • Li-ion
  • Jungheinrich EZS 010 electric tow tractor, capacity 1000 kg

    The compact pedestrian lithium-ion powered tow tractor with versatile applications.

    • Li-Ion Battery 24 V /36 A
    • Capacity 1000 kg
    • Width / length: 385 /915 mm
